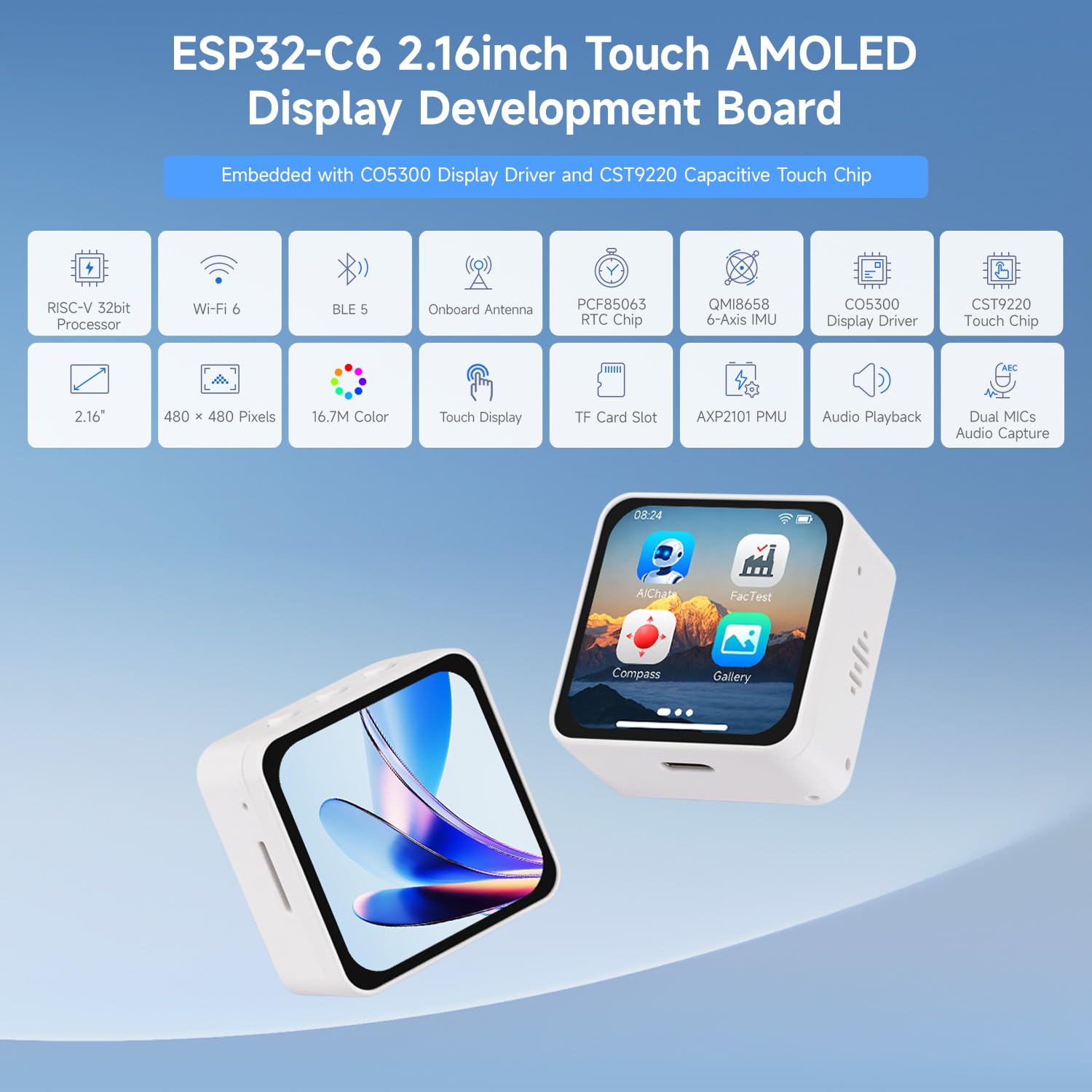

KLAYERS ESP32-C6 2.16inch AMOLED Display Touch Screen Development Board, 480×480 Resolution, 16.7M Color, WF6 & BLE 5, Dual Microphones,No BAT
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

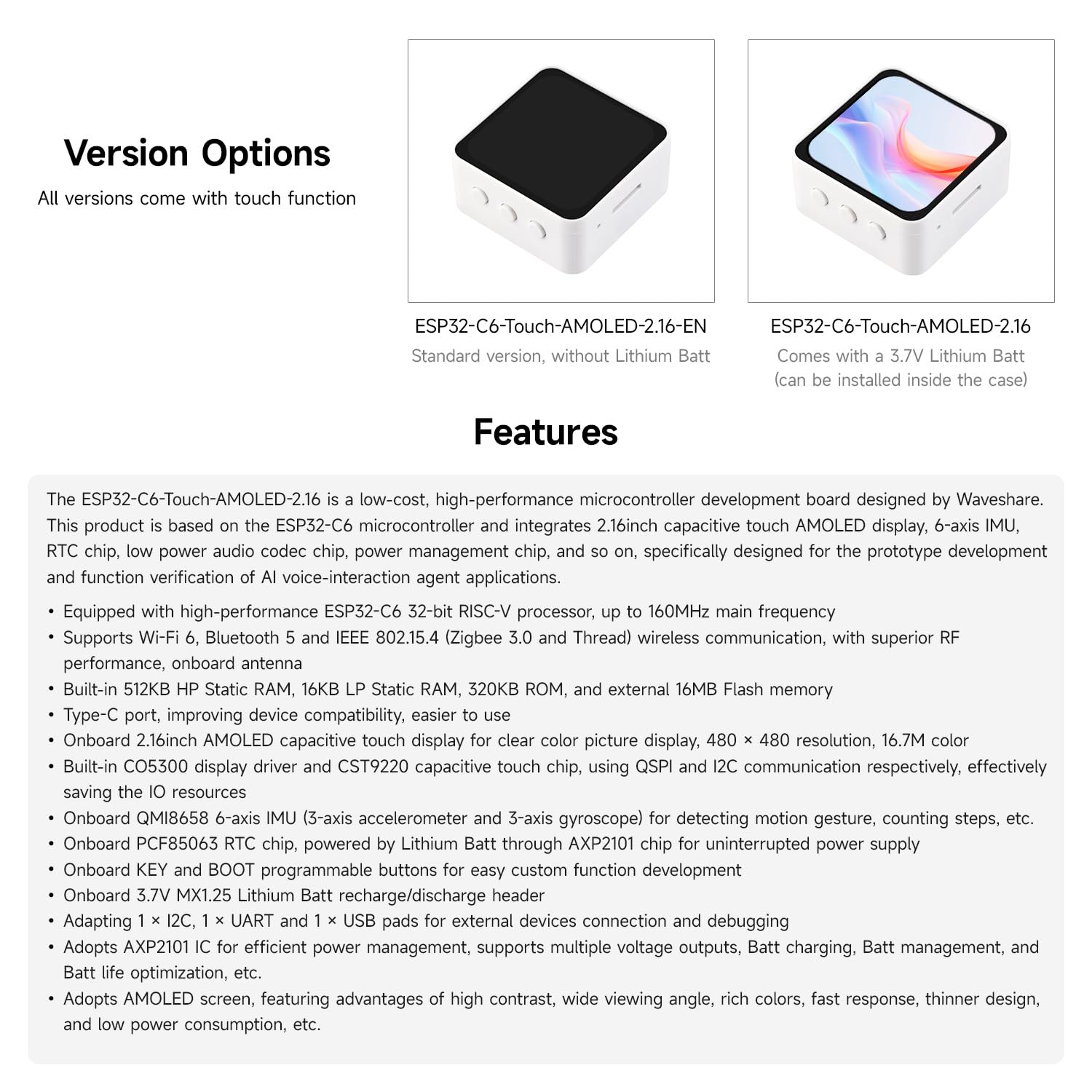

•Powered by ESP32-C6 32-bit RISC-V processor with up to 160MHz main frequency, integrating 512KB HP SRAM, 16KB LP SRAM, 320KB ROM, and external 16MB Flash.
•Supports WF 6, Blue-T 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wire-less communication with onboard an-tenna.

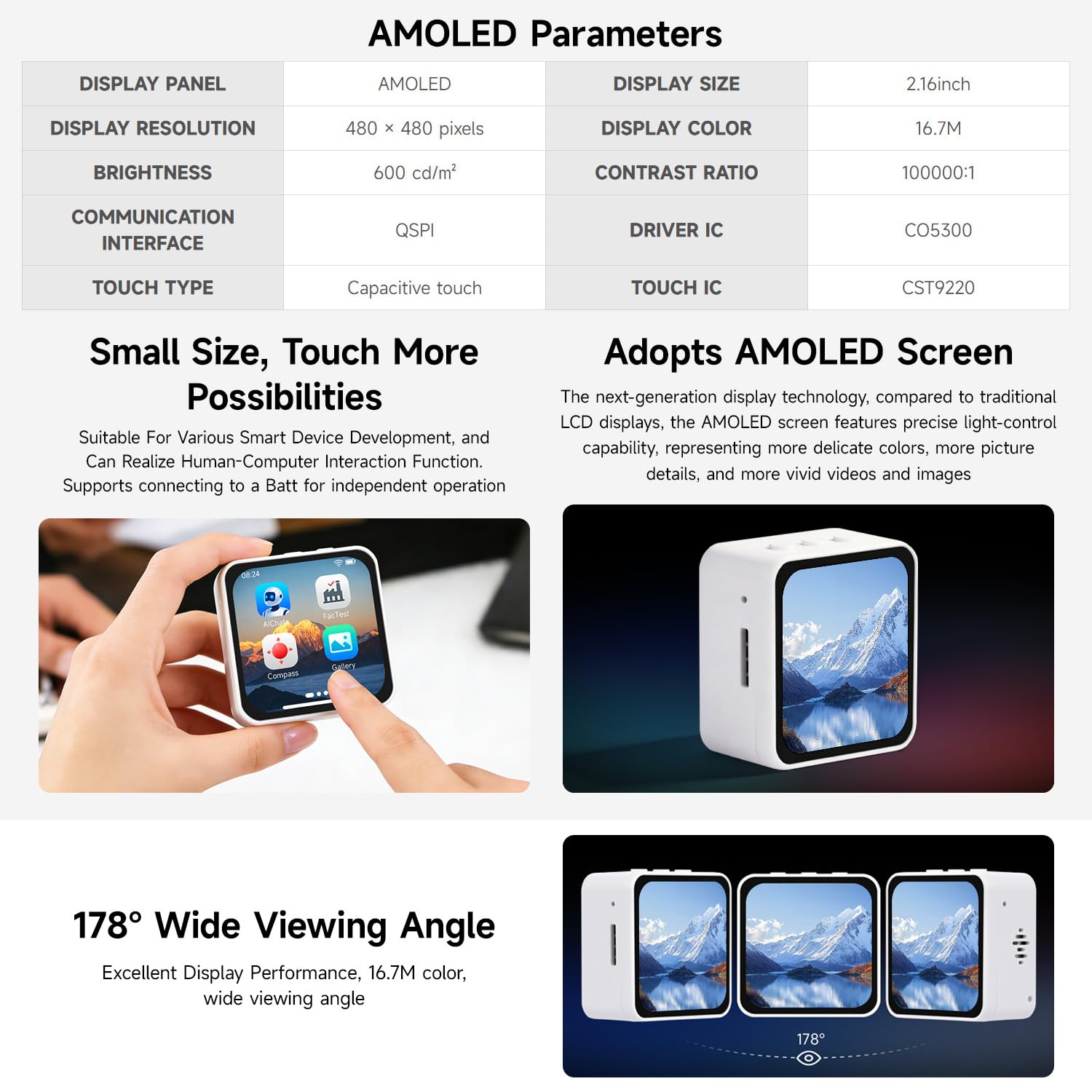

•Features a 2.16inch AMOLED capacitive touch display, 480×480 resolution, 16.7M colors, driven by CO5300 display driver (QSPI) and CST9220 touch chip (I2C).
•Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope).
•Equipped with AXP2101 power management IC supporting battery charging and management, Type-C port, and breakout pads for I2C, UART, and USB connections.
