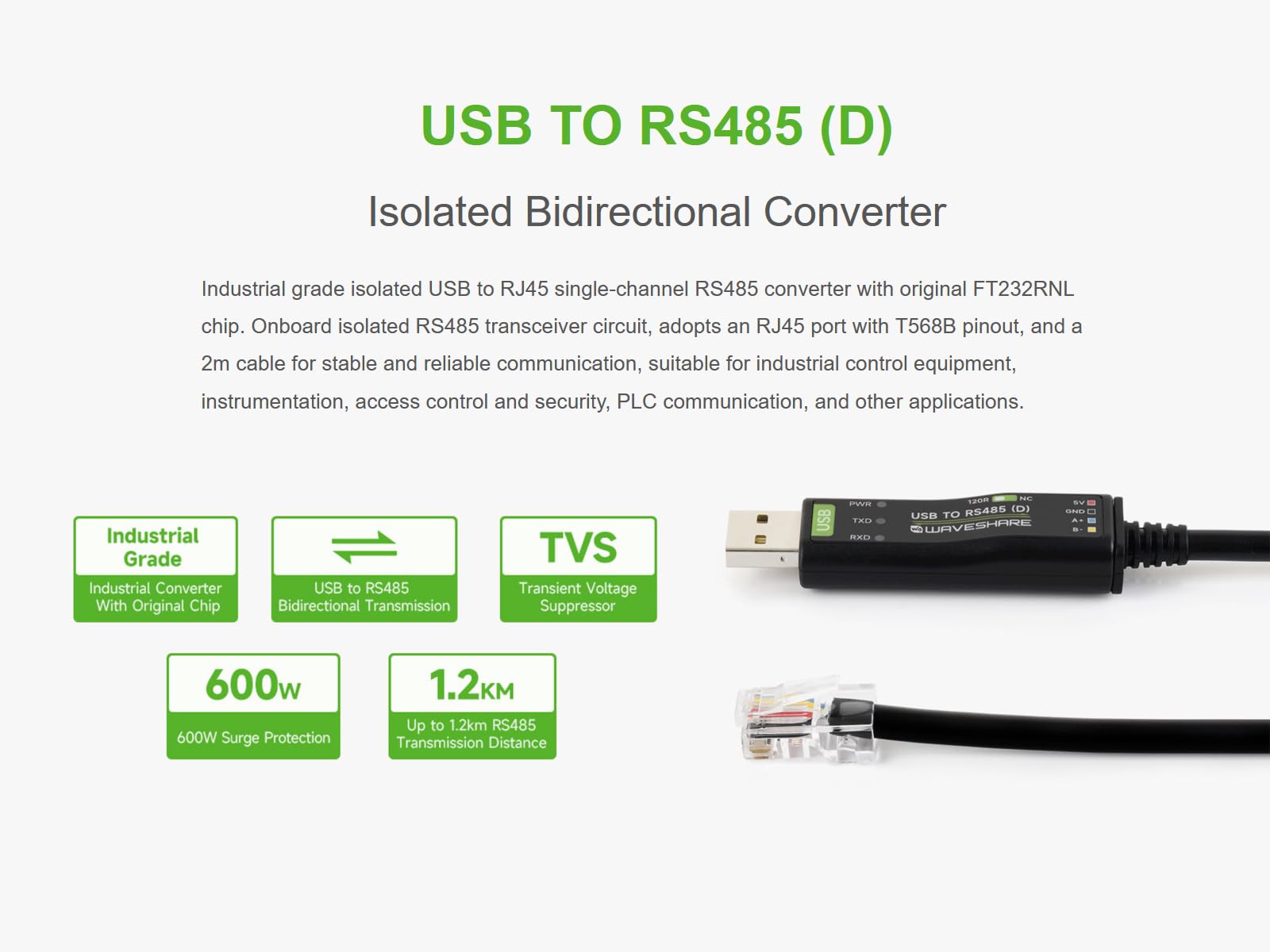

waveshare USB to RJ45 Single-Channel RS485 Isolated Bidirectional Converter
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

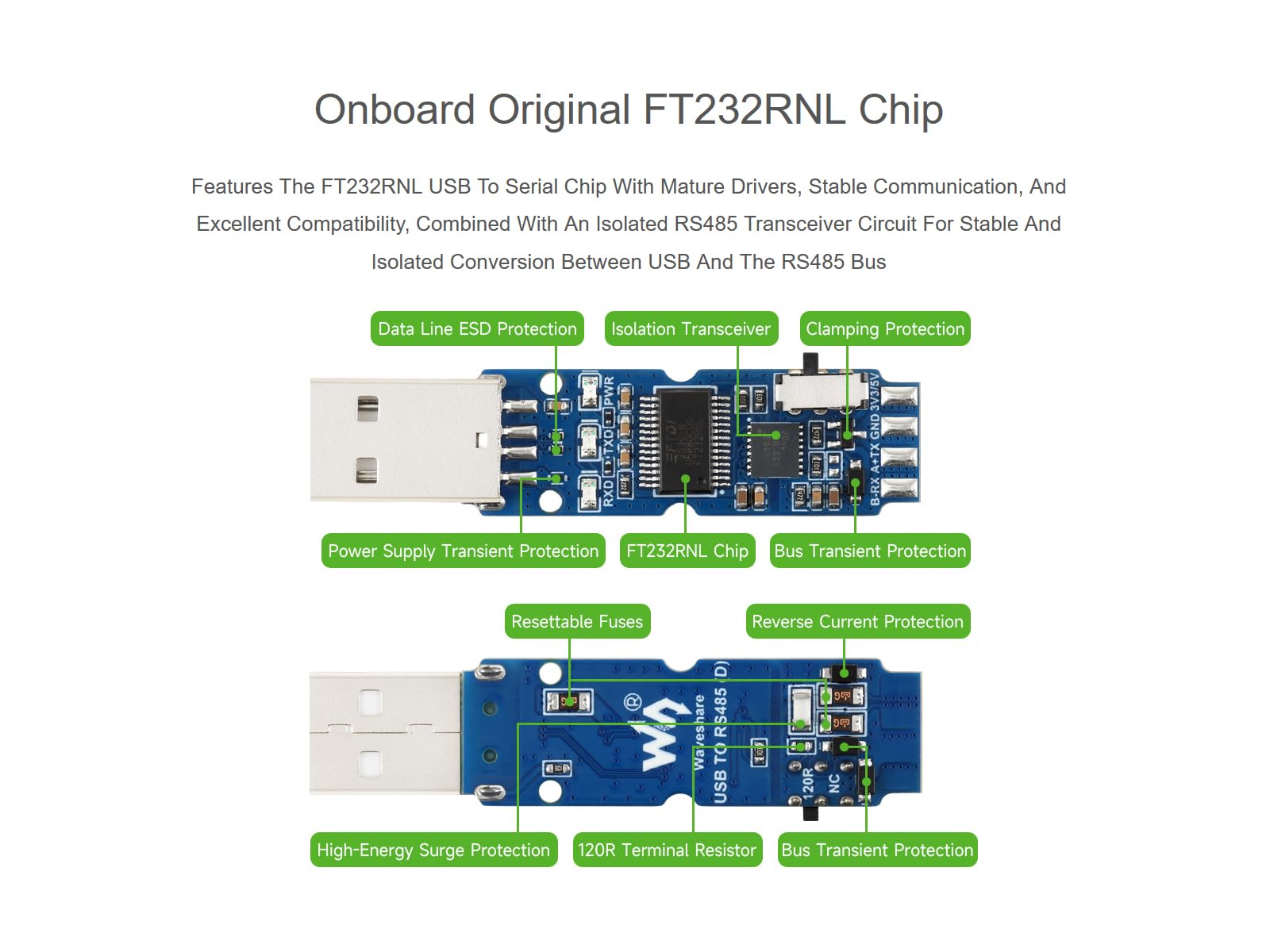

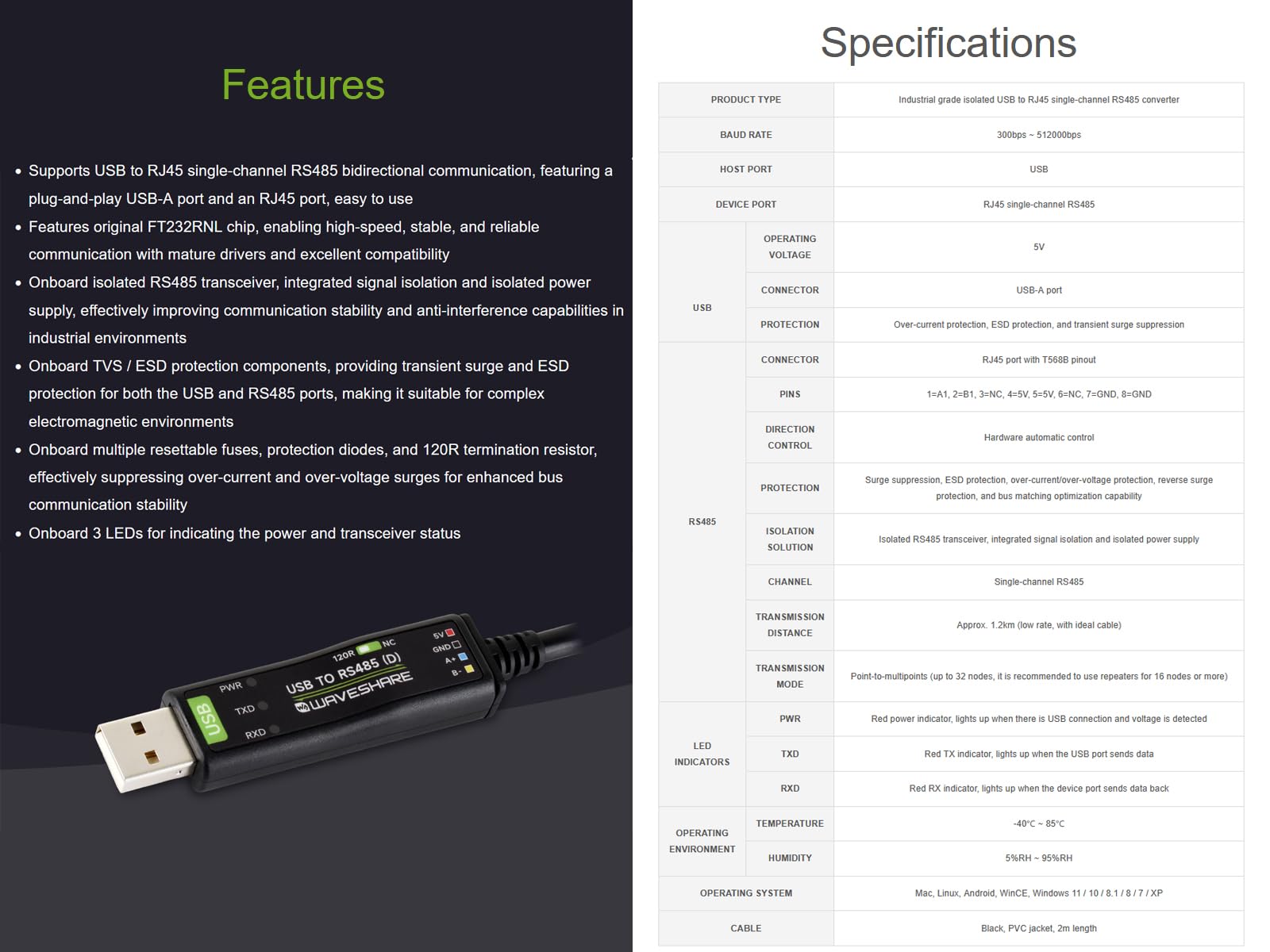

•USB to RS485 converter supports USB to RJ45 single-channel RS485 bidirectional communication, features original FT232RNL chip, enabling high-speed, stable, and reliable communication. Featuring a plug-and-play USB-A port, an RJ45 port, and a 2m cable, easy to use
•Onboard isolated RS485 transceiver, integrated signal isolation and isolated power supply, effectively improving communication stability and anti-interference capabilities in industrial environments
•Onboard TVS / ESD protection components, providing transient surge and ESD protection for both the USB and RS485 ports, making it suitable for complex electromagnetic environments
•Onboard multiple resettable fuses, protection diodes, and 120R termination resistor, effectively suppressing over-current and over-voltage surges for enhanced bus communication stability
•Onboard 3 LEDs for indicating the power and transceiver status
